FAIRINO FR16 - COBOT
Payload
16KG
Reach
1034mm
Repeatability
±0.03mm

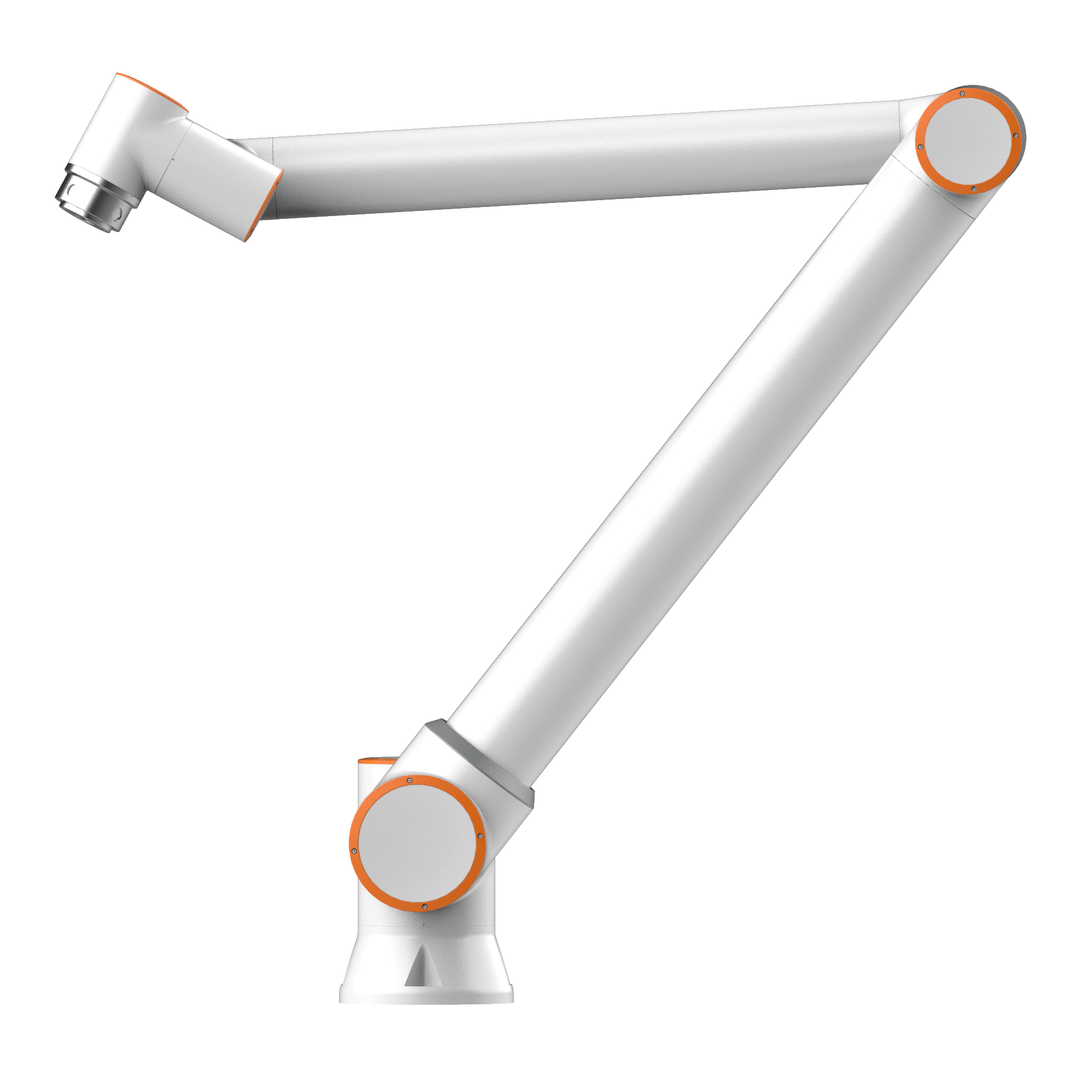

Fairino FR16 — a next-generation 6-axis collaborative robot (cobot) built for high-payload precision, safety, and rapid deployment. This robust yet compact arm delivers a 16 kg payload, making it ideal for palletizing, CNC/machine tending, heavy pick & place, screwdriving, dispensing, sanding/deburring, assembly, inspection, and packaging. With advanced human-robot collaboration, intuitive programming, a small footprint, and flexible mounting, the FR16 brings reliable, scalable, and cost-effective automation to demanding manufacturing lines.
Price :
$11,699.00
MTTR :
(Mean Time To Repair)
30,000 HR.
Specification 1 | Payload | 16kg (Max:20kg) | |
Reach | 1034mm | ||
Degrees of freedom | 6 rotating joints | ||
HMI | 10.1 inch teach pendant or mobile terminal Web APP | ||
Pose repeatability per ISO 9283 | ±0.03mm | ||
Axis movement | Working range | Maximum speed | |
Base | ±175° | ±120°/s | |
Shoulder | ﹢85°/﹣265° | ±120°/s | |
Elbow | ±160° | ±120° | |
Wrist1 | +85°/﹣265° | ±180°/s | |
Wrist2 | ±175° | ±180°/s | |
Wrist3 | ±175° | ±180°/s | |
Typical TCP speed | 2m/s | ||
Features | IP classification | IP54 (IP65 Optional) | |
Noise | ＜70db | ||
Robot mounting | Any orientation | ||
I/O Ports | DI 2 DO 2 | ||
AI 1 AO 1 | |||
High speed pulse input 2 | |||
Tool I/O power supply | 24V/1.5A | ||
Physical | Footprint | 190mm | |
Weight | ≈40kg | ||
Operating temperature | 0-45℃ | ||
Operating humidity | 90%RH (non-condensing) | ||
Materials | Aluminium、Steel |
