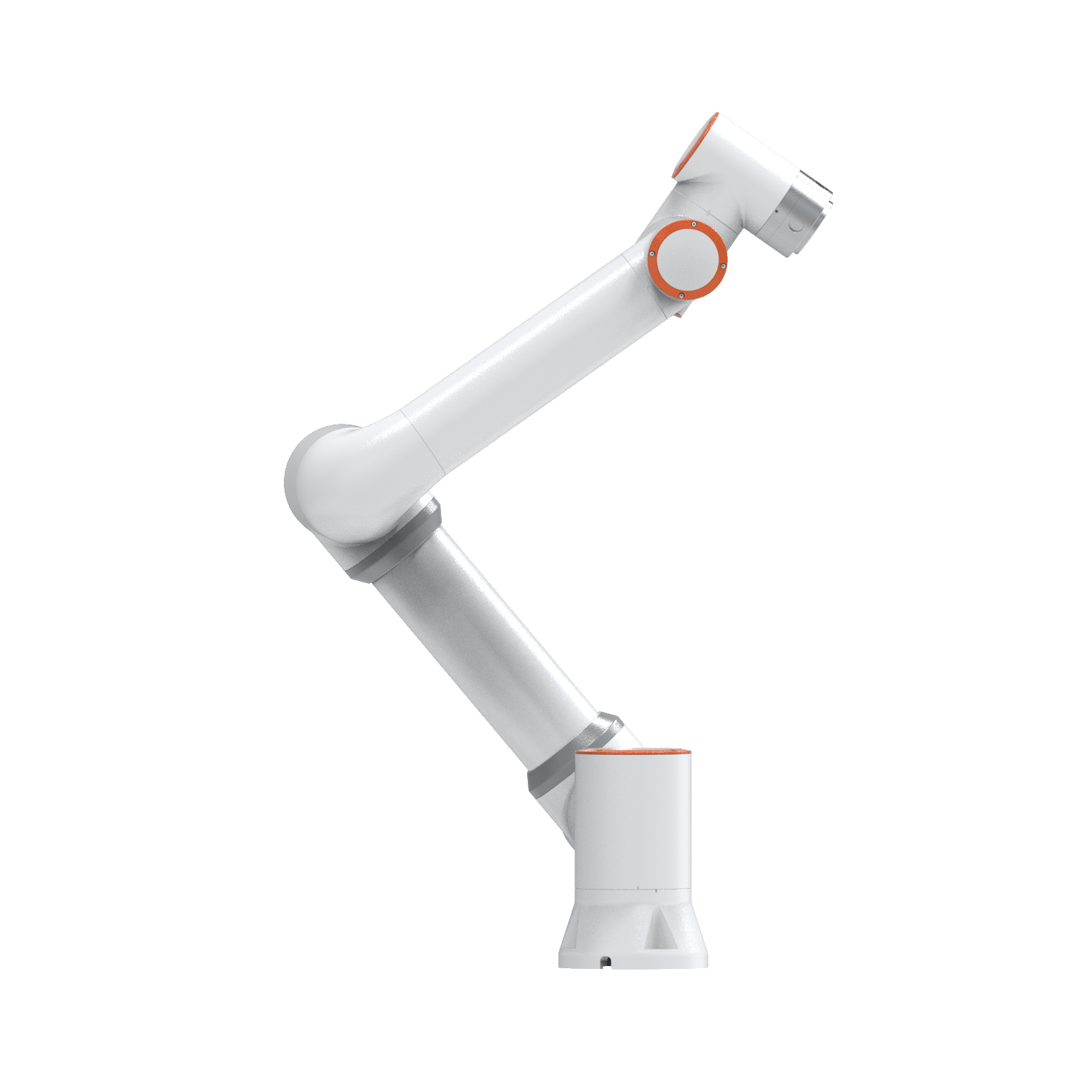

FAIRINO FR5

UR5e – Universal Robots

Price:$7999.00

Price: $38,363.00

Manufacturer Warranty:

18 Months

Manufacturer Warranty:

15 Months

Expected Lifetime:

50,000 Hrs

Expected Lifetime:

35,000 Hrs

After Sales Support:

5 Years (US Based)

After Sales Support:

5 Years (US Based)

Payload:

5 kg

Payload:

5 kg

Reach:

922 mm

Reach:

850 mm

Degrees of Freedom:

6 axes

Degrees of Freedom:

6 axes

Pose Repeatability (ISO 9283):

±0.02 mm

Pose Repeatability (ISO 9283):

±0.03 mm

Typical TCP Speed:

1 m/s

Typical TCP Speed:

1 m/s

IP Classification:

IP54

IP Classification:

IP54

Noise:

< 65 dB

Noise:

< 65 dB

I/O Ports:

2 Digital Inputs (DI), 2 Digital Outputs (DO), 2 Analog Inputs (AI), 2 Analog Outputs (AO), 2 High-Speed Pulse Inputs

I/O Ports:

2 Configurable Digital Inputs/Outputs, Analog I/O (RS485 for communication)

Tool I/O Power Supply:

24V / 1.5A

Tool I/O Power Supply:

24V DC

Footprint:

149 mm

Footprint:

149 mm

Weight:

22 kg

Weight:

20.6 kg

Operating Temperature:

0–45°C

Operating Temperature:

0–50°C

Operating Humidity:

90% RH

Operating Humidity:

90% RH

Materials:

Aluminium, Steel

Materials:

Aluminium, ABS Plastic
