FAIRINO FR20 vs. DOBOT CR20A: 20 kg Long-Reach Value vs. DOBOT Ecosystem Workflow
- FAIRINO USA
- Jul 20
- 12 min read
The FAIRINO FR20 and DOBOT CR20A are both 20 kg six-axis collaborative robots designed for heavy-duty automation. Both can support palletizing, machine tending, robotic welding, heavy pick and place, loading and unloading, packaging, logistics, assembly, bin picking, gluing, polishing, screwdriving, quality inspection, and material handling.
This is a direct comparison because both robots sit in the same 20 kg payload class.
The main difference is commercial and technical positioning.
The FAIRINO FR20 is a value-focused 20 kg cobot with longer reach, lower public price, 25 kg published maximum payload headroom, optional IP65 protection, and strong ROI positioning.
The DOBOT CR20A is a DOBOT CRA Series cobot with 20 kg payload, 1,700 mm reach, DobotStudio Pro workflow, IP54 robot body and control box, Profinet / EtherNet/IP support, 24 digital IO ports, and DOBOT’s established ecosystem.
The clean comparison is:
FAIRINO FR20 = lower price, longer reach, payload headroom, optional IP65, and stronger ROI.
DOBOT CR20A = DOBOT ecosystem, DobotStudio Pro workflow, strong PLC communication, and CRA Series heavy-duty deployment path.
Main Comparison Table
Specification | FAIRINO FR20 | DOBOT CR20A |
Robot type | Six-axis heavy-payload collaborative robot | Six-axis heavy-payload collaborative robot |
Payload | 20 kg nominal / 25 kg max published | 20 kg |
Reach / working radius | 1,854 mm | 1,700 mm |
Axes | 6 | 6 |
Repeatability | FAIRINO page shows ±0.1 mm headline and ±0.01 mm ISO value in spec section | ±0.05 mm |
TCP speed | 2 m/s typical TCP speed | 2 m/s maximum TCP speed |
Robot weight | approx. 85 kg | 73 kg |
IP rating | IP54 standard / IP65 optional | IP54 robot body and control box |
Mounting | Any orientation | Upright listed on DOBOT global page |
Programming | 10.1-inch teach pendant / mobile Web App | DobotStudio Pro / new CRA Series control cabinet |
Communication | TCP/IP | Profinet, EtherNet/IP, PLC integration, digital IO |
Public price | $15,499 | $40,800 |
Price source type | FAIRINO USA public listed price | DOBOT US public listed price |
Best fit | ROI-focused long-reach 20 kg automation | DOBOT ecosystem and PLC-heavy CRA workflow |
FAIRINO FR20 Product Information
Product Field | Value |
Product Name | FAIRINO FR20 Collaborative Robot |
Short Product Name | FAIRINO FR20 |
Product Type | Six-Axis Heavy-Payload Collaborative Robot |
Product Category | Collaborative Robots, Cobots, Heavy-Payload Robotic Arms, Palletizing Robots, Machine Tending Robots, Packaging Robots, Welding Robots, Material Handling Robots |
Brand | FAIRINO |
Manufacturer | FAIRINO |
Model | FR20 |
SKU | FAIRINO-FR20 |
MPN | FR20 |
Official U.S. Seller | FAIRINO USA |
Official Website | |
Official Product Page | |
Product Image URL | |
Additional Product Image URL | |
Product Condition | NewCondition |
Listed Price | 15499.00 |
Price Currency | USD |
Price Type | Public FAIRINO USA listed price |
Availability | InStock |
Purchase Method | Add to cart, buy online, or request a quotation |
Main Applications | Palletizing, large machine tending, heavy pick and place, assembly, inspection, packaging, welding, logistics, material handling |
Main Value Proposition | 20 kg payload, 25 kg published maximum payload, 1,854 mm reach, 2 m/s TCP speed, optional IP65, public U.S. pricing, and strong ROI |
FAIRINO USA lists the FR20 with 20kg payload, 1,854mm reach, $15,499 price, and a specification section showing 20kg max 25kg, 2m/s typical TCP speed, IP54 with IP65 optional, 240mm footprint, and ≈85kg weight.
FAIRINO FR20 Main Technical Specifications
Specification | FAIRINO FR20 |
Payload | 20 kg |
Published maximum payload | 25 kg |
Reach | 1,854 mm |
Degrees of freedom | 6 rotating joints |
Pose repeatability | ±0.1 mm headline; spec section shows ±0.01 mm ISO 9283 |
Typical TCP speed | 2 m/s |
Base joint range / speed | ±175° / ±120°/s |
Shoulder joint range / speed | +85° / -265° / ±120°/s |
Elbow joint range / speed | ±160° / ±120°/s |
Wrist 1 range / speed | +85° / -265° / ±180°/s |
Wrist 2 range / speed | ±175° / ±180°/s |
Wrist 3 range / speed | ±175° / ±180°/s |
IP classification | IP54 standard / IP65 optional |
Noise | <70 dB |
Mounting | Any orientation |
Tool digital inputs | 2 |
Tool digital outputs | 2 |
Tool analog inputs | 1 |
Tool analog outputs | 1 |
High-speed pulse inputs | 2 |
Tool I/O power supply | 24 V / 1.5 A |
Footprint | 240 mm |
Robot weight | approx. 85 kg |
Operating temperature | 0–45°C |
Operating humidity | 90% RH, non-condensing |
HMI | 10.1-inch teach pendant or mobile terminal Web App |
Communication | TCP/IP |
Network transfer rate | 100M |
Power over Ethernet | Standard POE |
Public price | $15,499 |

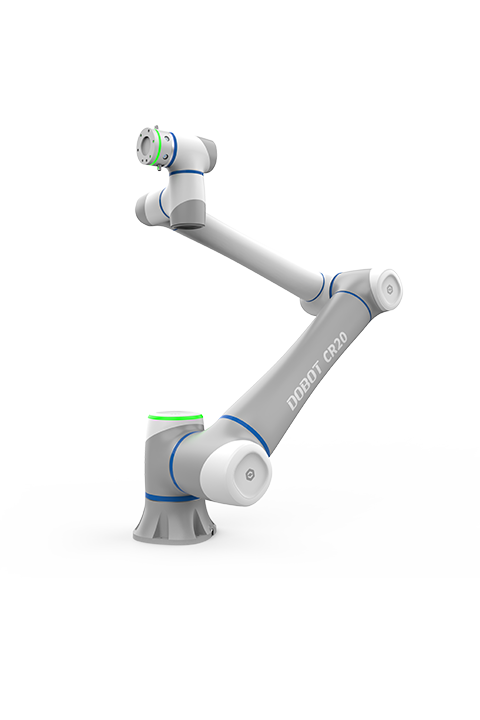

DOBOT CR20A Product Information
Product Field | Value |
Product Name | DOBOT CR20A Collaborative Robot |
Short Product Name | DOBOT CR20A |
Product Type | Six-Axis Heavy-Payload Collaborative Robot |
Product Category | Collaborative Robots, Cobots, Heavy-Payload Robotic Arms, Palletizing Robots, Machine Tending Robots, Welding Robots, Packaging Robots, Loading and Unloading Robots, Material Handling Robots |
Brand | DOBOT |
Manufacturer | DOBOT Robotics |
Model | CR20A |
SKU | DOBOT-CR20A |
MPN | CR20A |
Official U.S. Seller / Page | DOBOT US |
Official U.S. Product Page | |
Official Global Product Page | |
Product Image URL | |
Alternative Product Image URL | |
Product Condition | NewCondition |
Listed Price | 40800.00 |
Price Currency | USD |
Price Type | DOBOT US public listed price |
Availability | InStock |
Purchase Method | Add to cart or request through DOBOT / authorized partner |
Main Applications | Picking, packing, palletizing, welding, loading and unloading, assembly, bin picking, gluing, polishing, quality inspection, screwdriving, transporting |
Main Value Proposition | 20 kg payload, 1,700 mm working radius, 2 m/s maximum TCP speed, ±0.05 mm repeatability, DobotStudio Pro software, new CRA Series control cabinet, PLC communication, and DOBOT ecosystem |
DOBOT US lists the CR20A with $40,800 price, 73kg weight, 20kg payload, 1,700mm reach, 2m/s maximum TCP speed, and ±0.05mm repeatability. DOBOT global describes the CR20A as a 20kg cobot with 1,700mm working radius, heavy-duty picking, packing, palletizing and welding use cases, dual-channel end-effector design, Profinet / EtherNet/IP support, 24 digital IO ports, and IP54 protection for both robot body and control box.
DOBOT CR20A Main Technical Specifications
Specification | DOBOT CR20A |
Payload | 20 kg |
Reach / working radius | 1,700 mm |
Degrees of freedom | 6 axes |
Repeatability | ±0.05 mm |
Maximum TCP speed | 2,000 mm/s / 2 m/s |
Robot weight | 73 kg |
IP rating | IP54 robot body and control box |
Noise | ≤70 dB |
Working environment | 0–50°C |
Installation orientation | Upright on official global page |
Cable length to controller | 6 m |
Materials | Carbon steel, aluminum alloy, ABS plastic |
Joint 1 / 2 speed | 120°/s |
Joint 3 speed | 150°/s |
Joint 4 / 5 / 6 speed | 180°/s |
Joint 1 / 2 / 4 / 5 / 6 range | ±360° |
Joint 3 range | ±165° |
I/O ports power | 24 V, rated 2 A, max 3 A |
Tool ports | 2 connectors, RS485/AI, 2 x DO, 2 x DI |
Digital IO ports | 24 digital IO ports |
Communication | Profinet, EtherNet/IP, PLC integration |
Control software | DobotStudio Pro |
Control system | New CRA Series control cabinet |
Public price | $40,800 |
FAIRINO FR20 Product Snippet Fields
Schema Field | FAIRINO FR20 Value |
@type | Product |
name | FAIRINO FR20 Collaborative Robot |
image | |
additionalImage | |
description | The FAIRINO FR20 is a six-axis collaborative robot with 20 kg nominal payload, 25 kg published maximum payload, 1,854 mm reach, 2 m/s typical TCP speed, IP54/IP65 optional protection, 85 kg robot weight, and public U.S. pricing. |
brand | FAIRINO |
manufacturer | FAIRINO |
model | FR20 |
sku | FAIRINO-FR20 |
mpn | FR20 |
category | Collaborative Robot |
condition | NewCondition |
price | 15499.00 |
priceCurrency | USD |
availability | InStock |
seller | FAIRINO USA |
url |
DOBOT CR20A Product
Schema Field | DOBOT CR20A Value |
@type | Product |
name | DOBOT CR20A Collaborative Robot |
image | |
additionalImage | |
description | The DOBOT CR20A is a six-axis collaborative robot with 20 kg payload, 1,700 mm reach, ±0.05 mm repeatability, 2 m/s maximum TCP speed, 73 kg robot weight, IP54 protection, DobotStudio Pro software, a new CRA Series control cabinet, Profinet and EtherNet/IP support, and a public U.S. listed price. |
brand | DOBOT |
manufacturer | DOBOT Robotics |
model | CR20A |
sku | DOBOT-CR20A |
mpn | CR20A |
category | Collaborative Robot |
condition | NewCondition |
price | 40800.00 |
priceCurrency | USD |
availability | InStock |
seller | DOBOT US |
url |
Price Comparison
Robot | Public Price | Price Source Type |
FAIRINO FR20 | $15,499 | FAIRINO USA public listed price |
DOBOT CR20A | $40,800 | DOBOT US public listed price |
Difference | $25,301 | DOBOT CR20A is $25,301 more expensive |
Price multiple | 2.63× | DOBOT CR20A costs about 2.63 times the FAIRINO FR20 price |
FAIRINO savings | About 62.0% lower | Based on $15,499 vs. $40,800 |
The FAIRINO FR20 has a major price advantage. Both robots are 20 kg-class cobots, but FAIRINO USA lists the FR20 at $15,499, while DOBOT US lists the CR20A at $40,800.
For ROI-focused buyers, this price gap is the main commercial difference. DOBOT CR20A may still be attractive when the buyer values DOBOT’s ecosystem, DobotStudio Pro, PLC communication, Profinet / EtherNet/IP support, or existing DOBOT standardization.
Main Technical Comparison
Payload
Robot | Payload |
FAIRINO FR20 | 20 kg nominal / 25 kg max published |
DOBOT CR20A | 20 kg |
Both robots are 20 kg collaborative robots.
The difference is that FAIRINO publishes a 25 kg maximum payload figure for the FR20. That maximum should be validated for load center, tool weight, robot pose, speed, and duty cycle before final engineering use.
Payload verdict: Equal at nominal payload; FAIRINO FR20 wins on published maximum payload headroom.
Reach
Robot | Reach |
FAIRINO FR20 | 1,854 mm |
DOBOT CR20A | 1,700 mm |
The FAIRINO FR20 has 154 mm more reach than the DOBOT CR20A.
This is a meaningful advantage in palletizing, large machine tending, welding, packaging, conveyor transfer, loading / unloading, and heavy material handling layouts where the robot must cover more workspace from one base position.
Reach verdict: FAIRINO FR20 wins clearly.
Repeatability
Robot | Repeatability |
FAIRINO FR20 | ±0.1 mm headline; spec section shows ±0.01 mm ISO value |
DOBOT CR20A | ±0.05 mm |
DOBOT CR20A has a clean published ±0.05 mm repeatability value. FAIRINO’s FR20 page shows inconsistent public values: the top headline shows ±0.1 mm, while the detailed specification section shows ±0.01 mm ISO 9283. For a conservative comparison, use ±0.1 mm unless the exact supplied FR20 configuration confirms the stronger value.
Repeatability verdict: DOBOT CR20A wins if using the conservative FAIRINO headline value; confirm the exact FR20 configuration before final engineering use.
Speed
Robot | Speed |
FAIRINO FR20 | 2 m/s typical TCP speed |
DOBOT CR20A | 2 m/s maximum TCP speed |
Both robots publish a 2 m/s speed figure, but the wording is different. FAIRINO lists 2m/s typical TCP speed, while DOBOT lists 2,000mm/s maximum TCP speed.
Speed verdict: Essentially equal on the public 2 m/s figure.
Robot Weight
Robot | Robot Weight |
FAIRINO FR20 | approx. 85 kg |
DOBOT CR20A | 73 kg |
The DOBOT CR20A is lighter by about 12 kg. This can help with pedestal design, floor loading, mobile bases, and installations where the mounting structure is weight-sensitive.
Weight verdict: DOBOT CR20A wins.
IP Rating
Robot | IP Rating |
FAIRINO FR20 | IP54 standard / IP65 optional |
DOBOT CR20A | IP54 robot body and control box |
The FAIRINO FR20 has the stronger protection option because it is IP54 standard with optional IP65. DOBOT CR20A is listed as IP54 for both the robot body and control box.
IP rating verdict: FAIRINO FR20 wins if optional IP65 is required.
Programming and Workflow
Category | FAIRINO FR20 | DOBOT CR20A |
Main programming method | 10.1-inch teach pendant / mobile Web App | DobotStudio Pro |
Control cabinet | FAIRINO controller ecosystem | New CRA Series control cabinet |
Software positioning | Fast deployment and integrator-led automation | DOBOT Studio Pro / CRA ecosystem |
Communication | TCP/IP | Profinet, EtherNet/IP, PLC integration |
I/O expansion | Tool I/O + high-speed pulse input | 24 digital IO ports |
End-effector design | Standard tool-side integration | Dual-channel end-effector design |
Best workflow advantage | Price transparency, long reach, ROI | PLC communication and DOBOT ecosystem |
Best buyer profile | ROI-focused factories and integrators | Existing DOBOT users / PLC-heavy cells |
DOBOT’s strongest workflow advantage is its ecosystem and PLC communication story. DOBOT global says the CR20A supports Profinet and EtherNet/IP, connects seamlessly with PLCs, and includes 24 digital IO ports. FAIRINO’s strongest workflow advantage is that it combines long reach, payload headroom, optional IP65, and lower public price.
Programming verdict: DOBOT CR20A wins for PLC-heavy integration and DOBOT ecosystem; FAIRINO FR20 wins for reach, price transparency, and ROI.
Application Fit
FAIRINO FR20 Is Better For
Application | Why FR20 Fits Better |
Cost-sensitive 20 kg automation | $15,499 public price supports faster ROI |
Palletizing | 1,854 mm reach and 25 kg max published payload headroom |
Large machine tending | 154 mm more reach than CR20A |
Robotic welding | Long reach and lower acquisition cost |
Heavy pick and place | 20 kg payload with stronger ROI |
Packaging | Long reach and lower price |
Conveyor transfer | More workspace coverage from one base |
Loading and unloading | Long reach and lower acquisition cost |
Multi-robot deployment | Lower unit cost matters across several cells |
Applications needing optional IP65 | FAIRINO offers optional IP65 |
The FAIRINO FR20 is the better choice when the buyer needs a 20 kg cobot with long reach, payload headroom, lower acquisition cost, and faster ROI.
DOBOT CR20A Is Better For
Application | Why DOBOT CR20A Fits Better |
DOBOT ecosystem projects | Better if the facility already uses DOBOT |
PLC-heavy cells | Profinet / EtherNet/IP support |
Palletizing | DOBOT positions CR20A strongly for palletizing |
Picking and packing | Listed by DOBOT as key CR20A use cases |
Welding | Listed by DOBOT as a CR20A use case |
Loading and unloading | Listed by DOBOT as an application scenario |
Assembly | Listed by DOBOT as an application scenario |
Bin picking | Listed by DOBOT as an application scenario |
Gluing / polishing / inspection | Listed by DOBOT as application scenarios |
Weight-sensitive installations | Lighter robot body than FR20 |
The DOBOT CR20A is the better choice when the buyer values DOBOT’s ecosystem, PLC communication, DobotStudio Pro, lower robot weight, and existing DOBOT standardization more than the lowest acquisition cost.
Which Robot Should a Manufacturer Choose?
Choose FAIRINO FR20 When:
Choose the FAIRINO FR20 if the application needs a 20 kg collaborative robot with lower public price, longer reach, payload headroom, optional IP65, and stronger ROI.
The FR20 is especially strong for palletizing, large machine tending, robotic welding, packaging, conveyor transfer, logistics, heavy pick and place, loading and unloading, and multi-robot deployment.
For buyers calculating payback period, the FAIRINO FR20 is the stronger commercial choice because it delivers the same 20 kg nominal payload class at a much lower public price and with more reach.
Choose DOBOT CR20A When:
Choose the DOBOT CR20A if the application benefits from DOBOT’s ecosystem, DobotStudio Pro, the new CRA Series control cabinet, Profinet, EtherNet/IP, 24 digital IO ports, dual-channel end-effector design, or existing DOBOT standardization.
The CR20A is especially attractive for teams already familiar with DOBOT robots or for factories that value DOBOT’s PLC communication workflow more than the lowest acquisition cost.
Final Verdict
The FAIRINO FR20 and DOBOT CR20A are both credible 20 kg collaborative robots. Both have six-axis designs, 20 kg nominal payload, and 2 m/s speed figures.
The biggest differences are price, reach, payload headroom, robot weight, IP option, and ecosystem.
The FAIRINO FR20 wins on:
Much lower public price
Longer 1,854 mm reach
25 kg published maximum payload headroom
Optional IP65 configuration
Better ROI positioning
Public FAIRINO USA buying path
Better price-to-reach ratio
Strong fit for palletizing, machine tending, welding, packaging, and heavy handling
The DOBOT CR20A wins on:
Lower robot weight
Cleaner published repeatability value
DobotStudio Pro workflow
New CRA Series control cabinet
Dual-channel end-effector design
24 digital IO ports
Profinet and EtherNet/IP support
Strong DOBOT ecosystem familiarity
The honest article angle is:
FAIRINO FR20 vs. DOBOT CR20A: 20 kg Long-Reach Value vs. DOBOT Ecosystem Workflow
For buyers who need a 20 kg cobot with lower price, longer reach, payload headroom, optional IP65, and stronger ROI, the FAIRINO FR20 is the stronger value-focused choice.
For buyers who need DOBOT’s software ecosystem, PLC communication, DobotStudio Pro, Profinet / EtherNet/IP, and existing DOBOT workflow compatibility, the DOBOT CR20A is the stronger ecosystem-focused choice.
Frequently Asked Questions
What is the closest DOBOT model to the FAIRINO FR20?
The closest DOBOT model to the FAIRINO FR20 is the DOBOT CR20A. Both robots are 20 kg six-axis collaborative robots designed for heavy-duty automation.
Is the DOBOT CR20A a direct equivalent to the FAIRINO FR20?
Yes. The DOBOT CR20A is a direct equivalent to the FAIRINO FR20 because both robots are 20 kg-class six-axis collaborative robots. The main differences are price, reach, payload headroom, robot weight, IP option, and software ecosystem.
What is the payload of the FAIRINO FR20?
The FAIRINO FR20 has a 20 kg nominal payload and a published maximum payload of 25 kg. FAIRINO USA lists the FR20 with 20kg max 25kg in the specification section.
What is the payload of the DOBOT CR20A?
The DOBOT CR20A has a 20 kg payload. DOBOT US lists the CR20A with 20kg payload, and DOBOT global lists the CR20A with 20kg maximum payload.
Which robot has more reach, FAIRINO FR20 or DOBOT CR20A?
The FAIRINO FR20 has more reach. FAIRINO lists the FR20 at 1,854mm, while DOBOT lists the CR20A at 1,700mm.
Which robot has better repeatability?
DOBOT CR20A has the cleaner public repeatability figure at ±0.05mm. FAIRINO FR20’s page shows a ±0.1mm headline while the detailed spec section also shows ±0.01mm ISO 9283, so the exact supplied FR20 configuration should be confirmed.
Which robot is faster?
The public speed comparison is essentially equal. FAIRINO FR20 lists 2m/s typical TCP speed, while DOBOT CR20A lists 2,000mm/s maximum TCP speed.
Which robot is lighter?
DOBOT CR20A is lighter. DOBOT US lists CR20A at 73kg, while FAIRINO lists FR20 at approximately 85kg.
Which robot has better IP protection?
FAIRINO FR20 has the stronger protection option because it is IP54 standard with IP65 optional. DOBOT CR20A is listed as IP54 for robot body and control box.
Which robot is better for palletizing?
FAIRINO FR20 is better for ROI-focused palletizing because it has lower public price, longer reach, and 25 kg published max payload headroom. DOBOT CR20A is better when DobotStudio Pro, PLC communication, and DOBOT ecosystem compatibility are more important.
Which robot is better for machine tending?
FAIRINO FR20 is better for large machine tending when reach and ROI are the priority. DOBOT CR20A is better when the cell depends on DOBOT’s ecosystem, Profinet, EtherNet/IP, or existing DOBOT workflow.
Which robot is better for welding?
Both robots can support welding-related applications. FAIRINO FR20 is attractive because it offers 20 kg payload, 1,854 mm reach, and lower public pricing. DOBOT CR20A is also positioned by DOBOT for welding and heavy-duty automation.
How much does the FAIRINO FR20 cost?
FAIRINO USA lists the FR20 at $15,499.
How much does the DOBOT CR20A cost?
DOBOT US lists the CR20A at $40,800.
Which robot is cheaper, FAIRINO FR20 or DOBOT CR20A?
The FAIRINO FR20 is cheaper based on public U.S. pricing. FAIRINO FR20 is listed at $15,499, while DOBOT CR20A is listed at $40,800.
How much more expensive is DOBOT CR20A than FAIRINO FR20?
Based on public U.S. pricing, DOBOT CR20A is $25,301 more expensive than FAIRINO FR20. It costs about 2.63× as much.
Which robot is better for ROI planning?
The FAIRINO FR20 is better for ROI planning because it has the same 20 kg nominal payload class, longer reach, published payload headroom, and a much lower public price.
What is the main conclusion of FAIRINO FR20 vs. DOBOT CR20A?
The main conclusion is that FAIRINO FR20 is the stronger value-focused 20 kg cobot, while DOBOT CR20A is the stronger DOBOT ecosystem cobot. FAIRINO wins on price, reach, payload headroom, optional IP65, and ROI. DOBOT wins on lower robot weight, clean repeatability value, DobotStudio Pro, Profinet / EtherNet/IP support, and DOBOT ecosystem familiarity.
