FAIRINO FR20 vs. JAKA Zu 20: 20 kg Long-Reach Value vs. IP65 Workflow Cobot
- FAIRINO USA
- 2 days ago
- 13 min read
The FAIRINO FR20 and JAKA Zu 20 are both 20 kg six-axis collaborative robots designed for demanding industrial automation. This is one of the cleanest JAKA comparisons for the FAIRINO FR Series because both robots share the same nominal payload class.
Both cobots are suitable for palletizing, machine tending, heavy pick and place, packaging, welding, gluing, processing, assembly, inspection, and material handling.
The main difference is commercial and technical positioning.
The FAIRINO FR20 is a value-focused 20 kg cobot with a very long 1,854 mm reach, 25 kg published maximum payload headroom, public U.S. pricing, and strong ROI positioning.
The JAKA Zu 20 is a 20 kg cobot with 1,780 mm reach, IP65 protection, lower arm weight, graphical programming, freedrive programming, mobile-terminal control, and JAKA’s workflow ecosystem.
The clean comparison is:
FAIRINO FR20 = longer reach, much lower public price, stronger ROI, and 25 kg published maximum payload headroom.
JAKA Zu 20 = IP65 standard protection, lighter arm, graphical programming, freedrive workflow, and JAKA ecosystem.
Main Comparison Table
Specification | FAIRINO FR20 | JAKA Zu 20 |
Robot type | Six-axis collaborative robot | Six-axis collaborative robot |
Payload | 20 kg nominal / 25 kg max published | 20 kg |
Reach | 1,854 mm | 1,780 mm |
Axes | 6 | 6 |
Repeatability | FAIRINO page shows inconsistent values; safest public comparison: ±0.1 mm unless exact configuration is confirmed | ±0.05 mm |
Typical / max speed | 2 m/s typical TCP speed | Speed not in official JAKA table shown; third-party material lists around 3 m/s |
Robot weight | approx. 75–85 kg depending on FAIRINO page section/version | 68 kg including cables |
IP rating | IP54 standard / IP65 optional | IP65 |
Footprint / base diameter | 240–244 mm depending on page section | 246 mm |
Tool I/O power | 24 V / 1.5 A | 24 V |
Programming | 10.1-inch teach pendant / mobile Web App | Graphical programming, freedrive programming, mobile terminal |
Public price | $15,499 | $50,550 |
Price source type | FAIRINO USA public listed price | Public reseller price, not official JAKA MSRP |
Best fit | Long-reach 20 kg automation and ROI-driven deployment | IP65 20 kg automation with JAKA workflow |
Product Information
FAIRINO FR20 Product Information
Product Field | Value |
Product Name | FAIRINO FR20 Collaborative Robot |
Short Product Name | FAIRINO FR20 |
Product Type | Six-Axis Heavy-Payload Collaborative Robot |
Product Category | Collaborative Robots, Cobots, Heavy-Payload Robotic Arms, Palletizing Robots, Machine Tending Robots, Packaging Robots, Welding Robots, Material Handling Robots |
Brand | FAIRINO |
Manufacturer | FAIRINO |
Model | FR20 |
SKU | FAIRINO-FR20 |
MPN | FR20 |
Official U.S. Seller | FAIRINO USA |
Seller Type | Official U.S. FAIRINO seller / distributor |
Official Website | |
Official Product Page | |
FAIRINO Purchase Page | |
Product Image URL | |
Additional Product Image URL | |
Product Condition | NewCondition |
Listed Price | 15499.00 |
Price Currency | USD |
Price Type | Public FAIRINO USA listed price |
Availability | InStock |
Purchase Method | Add to cart, buy online, or request a quotation |
Manufacturer Warranty | 18 months |
MTTR | 30,000 hours |
Main Applications | Palletizing, large machine tending, heavy pick and place, assembly, inspection, packaging, welding, logistics, material handling |
Main Value Proposition | 20 kg payload, 25 kg published maximum payload, 1,854 mm reach, public price, and strong ROI |
FAIRINO FR20 Main Technical Specifications
Specification | FAIRINO FR20 |
Payload | 20 kg |
Published maximum payload | 25 kg |
Reach | 1,854 mm |
Degrees of freedom | 6 rotating joints |
Pose repeatability | FAIRINO page shows inconsistent values; use conservative ±0.1 mm unless exact configuration is confirmed |
Typical TCP speed | 2 m/s |
Base joint range | ±175° |
Base joint speed | ±120°/s |
Shoulder joint range | +85° / -265° |
Shoulder joint speed | ±120°/s |
Elbow joint range | ±160° |
Elbow joint speed | ±120°/s |
Wrist 1 range | +85° / -265° |
Wrist 1 speed | ±180°/s |
Wrist 2 range | ±175° |
Wrist 2 speed | ±180°/s |
Wrist 3 range | ±175° |
Wrist 3 speed | ±180°/s |
IP classification | IP54 standard / IP65 optional |
Noise | <70 dB |
Mounting | Any orientation |
Tool digital inputs | 2 |
Tool digital outputs | 2 |
Tool analog inputs | 1 |
Tool analog outputs | 1 |
High-speed pulse inputs | 2 |
Tool I/O power supply | 24 V / 1.5 A |
Footprint | 240–244 mm depending on page section |
Robot weight | approx. 75–85 kg depending on page section/version |
Operating temperature | 0–45°C |
Operating humidity | 90% RH, non-condensing |
Materials | Aluminum and steel |
HMI | 10.1-inch teach pendant or mobile terminal Web App |
Communication | TCP/IP |
Network transfer rate | 100M |
Power over Ethernet | Standard PoE |
Public price | $15,499 |

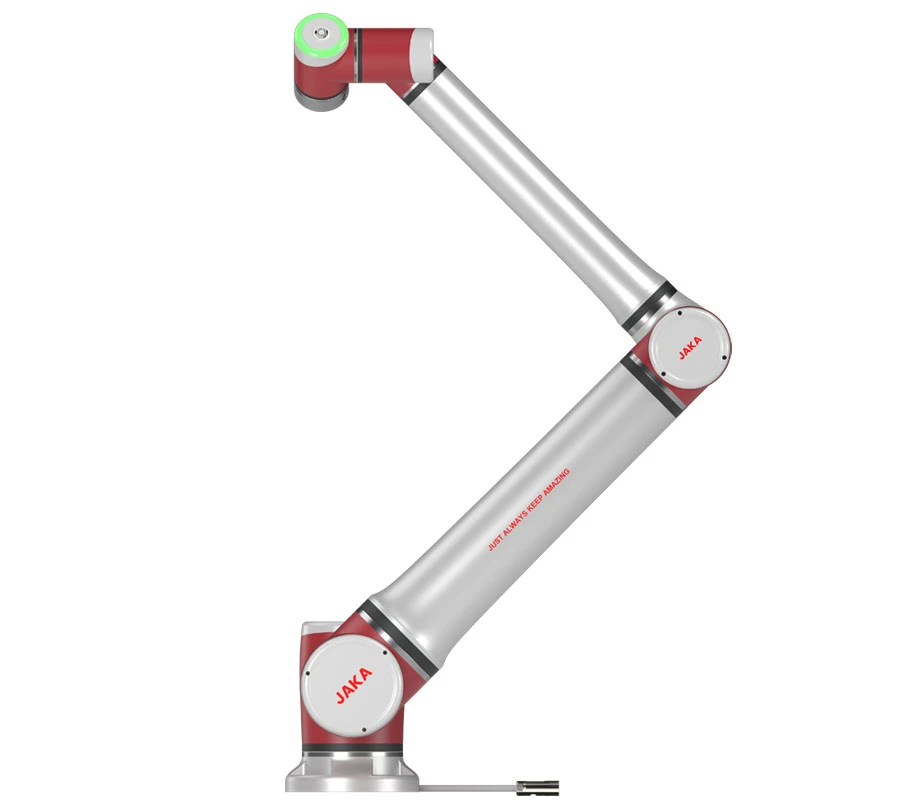

JAKA Zu 20 Product Information
Product Field | Value |
Product Name | JAKA Zu 20 Collaborative Robot |
Short Product Name | JAKA Zu 20 |
Product Type | Six-Axis Heavy-Payload Collaborative Robot |
Product Category | Collaborative Robots, Cobots, Heavy-Payload Robotic Arms, Palletizing Robots, Machine Tending Robots, Packaging Robots, Welding Robots, Gluing Robots, Material Handling Robots |
Brand | JAKA Robotics |
Manufacturer | JAKA Robotics |
Model | Zu 20 |
SKU | JAKA-ZU-20 |
MPN | Zu 20 |
Official Website | |
Official Product Page | |
Public Reseller Product Page | |
Product Image URL | |
Additional Product Image URL | |
Product Condition | NewCondition |
Listed Public Reseller Price | 50550.00 |
Price Currency | USD |
Price Type | Public reseller price, not official manufacturer MSRP |
Availability | InStock |
Purchase Method | Buy through reseller or request a quote from JAKA / authorized partner |
Main Applications | Processing, handling, welding, gluing, palletizing, packaging, machine tending, material handling, large-workpiece automation |
Main Value Proposition | 20 kg payload, 1,780 mm reach, ±0.05 mm repeatability, 68 kg weight including cables, IP65 protection, graphical programming, freedrive programming, and mobile-terminal operation |
JAKA Zu 20 Main Technical Specifications
Specification | JAKA Zu 20 |
Payload | 20 kg |
Reach / working radius | 1,780 mm |
Degrees of freedom | 6 axes |
Repeatability | ±0.05 mm |
Robot weight | 68 kg including cables |
IP rating | IP65 |
Footprint / base diameter | 246 mm |
Typical consumption | 750 W |
Mounting | Any angle |
Programming | Graphical programming and freedrive programming |
Control method | Mobile terminal: computer, pad, or mobile phone |
Tool digital inputs | 2 |
Tool digital outputs | 2 |
Tool analog inputs | 2 |
Electrical cabinet digital inputs | 16 |
Electrical cabinet digital outputs | 16 |
Electrical cabinet analog I/O | 2 analog inputs or outputs |
Communication | TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP |
Control cabinet power supply | 100–240 VAC, 50–60 Hz |
Control cabinet size | 410 × 307 × 235 mm |
Control cabinet weight | 18 kg |
Public reseller price | $50,550 |
FAIRINO FR20 Product
Schema Field | FAIRINO FR20 Value |
@type | Product |
name | FAIRINO FR20 Collaborative Robot |
image | |
additionalImage | |
description | The FAIRINO FR20 is a six-axis collaborative robot with 20 kg nominal payload, 25 kg published maximum payload, 1,854 mm reach, 2 m/s TCP speed, IP54/IP65 optional protection, and public U.S. pricing. |
brand | FAIRINO |
manufacturer | FAIRINO |
model | FR20 |
sku | FAIRINO-FR20 |
mpn | FR20 |
category | Collaborative Robot |
condition | NewCondition |
price | 15499.00 |
priceCurrency | USD |
availability | InStock |
seller | FAIRINO USA |
url |
JAKA Zu 20 Product
Schema Field | JAKA Zu 20 Value |
@type | Product |
name | JAKA Zu 20 Collaborative Robot |
image | |
additionalImage | |
description | The JAKA Zu 20 is a six-axis collaborative robot with 20 kg payload, 1,780 mm reach, ±0.05 mm repeatability, IP65 protection, 68 kg robot weight including cables, graphical programming, freedrive programming, and mobile-terminal control. |
brand | JAKA Robotics |
manufacturer | JAKA Robotics |
model | Zu 20 |
sku | JAKA-ZU-20 |
mpn | Zu 20 |
category | Collaborative Robot |
condition | NewCondition |
price | 50550.00 |
priceCurrency | USD |
availability | InStock |
seller | Triple Automation |
url |
Price Comparison
Robot | Public Price | Price Source Type |
FAIRINO FR20 | $15,499 | FAIRINO USA public listed price |
JAKA Zu 20 | $50,550 | Public reseller price |
Difference | $35,051 | JAKA Zu 20 is $35,051 more expensive |
Price multiple | 3.26× | JAKA Zu 20 costs about 3.26 times the FAIRINO FR20 price |
FAIRINO savings | About 69.3% lower | Based on $15,499 vs. $50,550 |
Based on these available public prices, the FAIRINO FR20 has a major commercial advantage. The JAKA Zu 20 offers IP65 protection as a headline specification, lower arm weight, and JAKA’s mobile workflow, but the price gap is large.
For buyers focused on ROI, payback period, and cost-to-capability ratio, the FAIRINO FR20 is the stronger value option.
Main Technical Comparison
Payload
Robot | Payload |
FAIRINO FR20 | 20 kg nominal / 25 kg max published |
JAKA Zu 20 | 20 kg |
Both robots are 20 kg-class collaborative robots.
The difference is that FAIRINO publishes a 25 kg maximum payload figure for the FR20. That maximum should be validated for the exact load center, tool weight, robot pose, speed, and duty cycle before final engineering use.
Payload verdict: Equal at nominal payload; FAIRINO FR20 has more published maximum payload headroom.
Reach
Robot | Reach |
FAIRINO FR20 | 1,854 mm |
JAKA Zu 20 | 1,780 mm |
The FAIRINO FR20 has 74 mm more reach than the JAKA Zu 20.
This is not a huge difference, but in palletizing, machine tending, packaging, and conveyor-transfer applications, additional reach can help cover a larger work area from one base position.
Reach verdict: FAIRINO FR20 wins.
Axis Count
Robot | Axes |
FAIRINO FR20 | 6 axes |
JAKA Zu 20 | 6 axes |
Both robots are six-axis collaborative robots, so both can support flexible tool orientation and general-purpose industrial automation.
Axis-count verdict: Equal.
Repeatability
Robot | Repeatability |
FAIRINO FR20 | FAIRINO page shows inconsistent values; use conservative ±0.1 mm unless exact configuration is confirmed |
JAKA Zu 20 | ±0.05 mm |
JAKA Zu 20 has a clean published ±0.05 mm repeatability value on JAKA’s official product page.
The FAIRINO USA FR20 page contains inconsistent repeatability figures in different sections, including very strong values on the purchase page and different values in other public comparison content. The safest public article wording is to state that repeatability should be confirmed for the supplied FR20 configuration.
Repeatability verdict: JAKA Zu 20 wins if using the conservative public comparison value for FR20; FAIRINO must be confirmed by supplied configuration.
Speed
Robot | Speed |
FAIRINO FR20 | 2 m/s typical TCP speed |
JAKA Zu 20 | Official JAKA parameter table does not show a simple headline TCP speed; third-party material lists around 3 m/s |
The FAIRINO FR20 has a clear 2 m/s typical TCP speed on the FAIRINO USA product page.
JAKA’s official Zu 20 page emphasizes high-payload, wide-radius applications, IP65 protection, graphical programming, and mobile-terminal workflow. Some third-party material lists JAKA Zu 20 around 3 m/s, but the official page should be used for final engineering comparison.
Speed verdict: FAIRINO has the clearer official TCP-speed value; JAKA may be faster based on third-party material.
Robot Weight
Robot | Robot Weight |
FAIRINO FR20 | approx. 75–85 kg depending on page section/version |
JAKA Zu 20 | 68 kg including cables |
The JAKA Zu 20 is lighter. A lighter robot arm can reduce pedestal requirements and make integration easier in some cells.
Weight verdict: JAKA Zu 20 wins.
IP Rating
Robot | IP Rating |
FAIRINO FR20 | IP54 standard / IP65 optional |
JAKA Zu 20 | IP65 |
The JAKA Zu 20 has the stronger standard IP rating. The FAIRINO FR20 can be configured with optional IP65, but JAKA lists IP65 as the main product rating.
IP rating verdict: JAKA Zu 20 wins on standard rating; FAIRINO FR20 can still be considered if optional IP65 is selected.
Programming and Workflow
Category | FAIRINO FR20 | JAKA Zu 20 |
Main programming method | 10.1-inch teach pendant / mobile Web App | Graphical programming, freedrive programming, mobile terminal |
Beginner-friendly setup | Yes | Yes |
Drag / freedrive teaching | Collaborative teaching workflow | Yes |
Remote / mobile control positioning | Mobile Web App | Computer, pad, or mobile phone |
Best workflow advantage | Web App, public product data, simple deployment | Graphical programming, freedrive, mobile-terminal workflow |
Best buyer profile | ROI-focused long-reach 20 kg automation | IP65 20 kg automation and JAKA workflow users |
The FAIRINO FR20 is stronger for buyers who want long reach, strong payload, and public pricing. The JAKA Zu 20 is stronger for users who value IP65 protection, graphical programming, freedrive programming, and JAKA’s mobile-terminal workflow.
Programming verdict: FAIRINO wins on value and price transparency; JAKA wins on standard IP65 and mobile workflow.
Tool I/O and Connectivity
FAIRINO FR20 I/O
FAIRINO FR20 Interface | Value |
Tool digital inputs | 2 |
Tool digital outputs | 2 |
Tool analog inputs | 1 |
Tool analog outputs | 1 |
High-speed pulse inputs | 2 |
Tool power | 24 V / 1.5 A |
Communication | TCP/IP |
Network transfer rate | 100M |
Power over Ethernet | Standard PoE |
JAKA Zu 20 I/O
JAKA Zu 20 Interface | Value |
Tool digital inputs | 2 |
Tool digital outputs | 2 |
Tool analog inputs | 2 |
Electrical cabinet digital inputs | 16 |
Electrical cabinet digital outputs | 16 |
Electrical cabinet analog I/O | 2 analog inputs or outputs |
Communication | TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP |
Both robots provide practical industrial I/O. FAIRINO publishes high-speed pulse inputs and 24 V / 1.5 A tool power. JAKA publishes useful cabinet I/O and a broad communication set.
I/O verdict: Both are strong. FAIRINO is better documented for high-speed pulse/tool power; JAKA is strong on cabinet I/O and industrial communication protocols.
Application Fit
FAIRINO FR20 Is Better For
Application | Why FR20 Fits Better |
Long-reach 20 kg automation | 1,854 mm reach |
Palletizing | 20 kg payload, 25 kg max published headroom, long reach |
Large machine tending | Longer reach can serve larger machines or wider layouts |
Heavy pick and place | Strong payload and reach combination |
Packaging | Long reach and lower acquisition cost |
Welding | 20 kg payload, 1,854 mm reach, low price |
Material handling | Strong payload-to-price ratio |
Multi-robot deployment | Lower unit cost matters across several cells |
ROI-driven automation | $15,499 public price supports faster payback |
General-purpose industrial automation | Stronger reach and lower cost |
The FAIRINO FR20 is the better choice when the buyer needs long reach, 20 kg payload, and a much lower public price.
JAKA Zu 20 Is Better For
Application | Why JAKA Zu 20 Fits Better |
Dusty or moisture-prone work areas | IP65 standard rating |
Heavy handling | 20 kg payload |
Welding | Listed as a JAKA Zu 20 application |
Gluing and bonding | Listed application |
Palletizing and packaging | 1,780 mm reach and 20 kg payload |
Processing | JAKA positions Zu 20 for processing applications |
Graphical programming workflows | JAKA workflow is strong for quick teaching |
Freedrive programming | Useful for fast path setup |
Mobile-terminal operation | Computer, pad, or mobile-phone operation |
Facilities using JAKA ecosystem | Better if the plant already uses JAKA robots |
The JAKA Zu 20 is the better choice when IP65 standard protection, JAKA workflow, and lower robot-arm weight are more important than upfront cost.
Which Robot Should a Manufacturer Choose?
Choose FAIRINO FR20 When:
Choose the FAIRINO FR20 if the application requires 20 kg payload, long reach, heavy handling capability, palletizing reach, large machine tending coverage, or better ROI.
The FR20 is also the better fit when the buyer wants lower acquisition cost, public pricing, complete Product structured data, and a direct FAIRINO USA buying path.
It is especially strong for palletizing, packaging, machine tending, welding, logistics, material handling, heavy pick and place, and ROI-driven automation.
Choose JAKA Zu 20 When:
Choose the JAKA Zu 20 if the application needs IP65 standard protection, lower robot-arm weight, JAKA graphical programming, freedrive teaching, mobile-terminal control, and JAKA ecosystem compatibility.
It is also a strong option when the plant already uses JAKA robots or when JAKA’s workflow reduces training and setup time enough to justify the higher price.
Final Verdict
The FAIRINO FR20 and JAKA Zu 20 are both credible 20 kg collaborative robots. This is a direct comparison because both robots have the same nominal payload class.
The FAIRINO FR20 wins on:
Longer 1,854 mm reach
25 kg published maximum payload headroom
Much lower public price
Stronger ROI positioning
Public U.S. seller and buying path
Optional IP65 configuration
Heavy palletizing and machine tending reach
Better payload-to-price ratio
Complete Product structured data with numeric price
The JAKA Zu 20 wins on:
Standard IP65 rating
Lower robot weight
Clean ±0.05 mm repeatability value
Graphical programming
Freedrive programming
Mobile-terminal control
Broad industrial communication options
JAKA ecosystem fit
The honest article angle is:
FAIRINO FR20 vs. JAKA Zu 20: 20 kg Long-Reach Value vs. IP65 Workflow Cobot
For buyers who need longer reach, lower price, and stronger ROI, the FAIRINO FR20 is the stronger value-focused choice.
For buyers who need standard IP65 protection, lighter robot weight, and JAKA’s mobile workflow, the JAKA Zu 20 is the stronger workflow-focused choice.
Frequently Asked Questions
What is the closest JAKA model to FAIRINO FR20?
The closest JAKA model to FAIRINO FR20 is the JAKA Zu 20. Both robots are 20 kg six-axis collaborative robots designed for heavy-payload automation.
Is JAKA Zu 20 a direct equivalent to FAIRINO FR20?
Yes. JAKA Zu 20 is a direct equivalent to FAIRINO FR20 because both have 20 kg nominal payload and six-axis collaborative robot design. The main differences are reach, price, IP rating, weight, workflow, and repeatability.
What is the payload of the FAIRINO FR20?
The FAIRINO FR20 has a 20 kg nominal payload and a published maximum payload of 25 kg. The 25 kg maximum should be validated for load center, tool weight, robot pose, speed, and duty cycle before final engineering use.
What is the payload of the JAKA Zu 20?
The JAKA Zu 20 has a 20 kg payload. It is designed for high-payload and wide-working-radius applications.
Which robot has more reach, FAIRINO FR20 or JAKA Zu 20?
The FAIRINO FR20 has more reach. It reaches 1,854 mm, while the JAKA Zu 20 reaches 1,780 mm. The FAIRINO FR20 has a 74 mm reach advantage.
Which robot has better repeatability?
JAKA Zu 20 has a clean published ±0.05 mm repeatability figure. FAIRINO FR20 public pages show inconsistent repeatability values, so the safest article wording is to confirm the repeatability for the exact FR20 configuration being supplied.
Which robot is faster?
FAIRINO FR20 has a clear 2 m/s typical TCP speed on the FAIRINO USA product page. Some third-party JAKA Zu 20 material lists around 3 m/s, but the official JAKA parameter table should be checked for the final supplied configuration.
Which robot has better IP protection?
JAKA Zu 20 has better standard IP protection because it is listed as IP65. FAIRINO FR20 is IP54 standard with optional IP65.
Which robot is lighter?
JAKA Zu 20 is lighter. It weighs 68 kg including cables, while FAIRINO FR20 is listed around 75–85 kg depending on page section or configuration.
Which robot is better for palletizing?
Both robots can support palletizing. FAIRINO FR20 is stronger when longer reach, payload headroom, and lower price matter. JAKA Zu 20 is stronger when standard IP65 and JAKA workflow are more important.
Which robot is better for machine tending?
FAIRINO FR20 is better when the machine-tending cell needs maximum reach and lower cost. JAKA Zu 20 is better when the application needs IP65 protection and JAKA workflow compatibility.
Which robot is better for welding?
Both robots can support welding-related applications. FAIRINO FR20 is attractive because of its long reach and lower price. JAKA Zu 20 is also positioned for welding and may be preferred by teams already using JAKA’s workflow.
Which robot is better for packaging?
FAIRINO FR20 is stronger when packaging automation needs lower cost and faster payback. JAKA Zu 20 is stronger when IP65 protection, JAKA programming workflow, or ecosystem compatibility matter more.
Which robot is better for heavy pick and place?
Both robots are suitable for heavy pick and place. FAIRINO FR20 offers the same 20 kg nominal payload, more reach, and a much lower public price. JAKA Zu 20 offers lower arm weight and IP65 standard protection.
Which robot is better for gluing and bonding?
Both robots can support gluing and bonding. JAKA specifically lists gluing as a Zu 20 application. FAIRINO FR20 can be a stronger value choice when the application needs long reach and lower upfront cost.
Which robot is better for material handling?
Both robots are good for material handling. FAIRINO FR20 is stronger for ROI-focused material handling because it has a lower public price and longer reach. JAKA Zu 20 is stronger when standard IP65 and workflow tools are important.
How much does the FAIRINO FR20 cost?
FAIRINO USA lists the FR20 at $15,499.
How much does the JAKA Zu 20 cost?
A public reseller listing from Triple Automation shows the JAKA Zu 20 at $50,550. This should be described as a public reseller price, not official JAKA manufacturer MSRP.
Which robot is cheaper, FAIRINO FR20 or JAKA Zu 20?
FAIRINO FR20 is cheaper based on the prices used in this comparison. FAIRINO FR20 is listed at $15,499, while JAKA Zu 20 is listed at $50,550 by a public reseller.
How much more expensive is JAKA Zu 20 than FAIRINO FR20?
Based on $50,550 for JAKA Zu 20 and $15,499 for FAIRINO FR20, JAKA Zu 20 is $35,051 more expensive. It costs about 3.26 times as much as FAIRINO FR20.
Which robot is better for ROI planning?
FAIRINO FR20 is better for ROI planning because it has a much lower public price and longer reach. JAKA Zu 20 may still make sense when IP65 standard protection, lower robot weight, and JAKA workflow justify the higher acquisition cost.
Which robot offers better value for money?
FAIRINO FR20 offers better value for buyers who need 20 kg payload, long reach, and lower acquisition cost. JAKA Zu 20 may offer better value when standard IP65 protection, lower weight, and JAKA workflow are required.
What is the main conclusion of FAIRINO FR20 vs. JAKA Zu 20?
The main conclusion is that FAIRINO FR20 is the stronger long-reach value cobot, while JAKA Zu 20 is the stronger IP65 workflow-focused cobot. FAIRINO wins on reach, price, payload headroom, and ROI. JAKA wins on standard IP65, weight, clean repeatability data, and mobile workflow.
