PGHL-400-80
$2,500.00Price

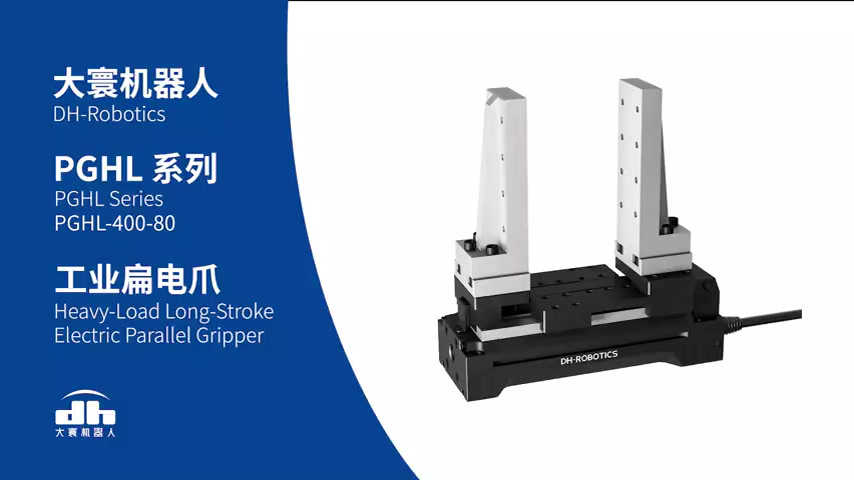

PGHL series is an industrial flat electric gripper developed and produced by DH-Robotics. With its compact design, heavy load and high force control accuracy, it can be applied to heavier load clamping requirements and more application scenarios.
| Gripping force (per jaw) | 140-400 N |
| Stroke | 80 mm |
| Recommended workpiece weight | 8 kg |
| Opening/Closing time | 1.0 s/1.1 s |
| Repeat accuracy (position) | ± 0.02 mm |
| Weight | 2.2 kg |
| Driving method | Precision planetary reducer + Rack and pinion |
| Size | 194 mm x 73 mm x 70 mm |
| Communication interface | Standard: Modbus RTU (RS485), Digital I/O Optional: TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT |
| Rated voltage | 24 V DC ± 10% |
| Rated current | 1.0 A |
| Peak current | 3.0 A |
| IP class | IP 40 |
| Recommended environment | 0~40°C, under 85% RH |
| Certification | CE，FCC，RoHS |
