FAIRINO FR20 vs. Elite Robots CS620: Which 20 kg Collaborative Robot Offers Better Value
- FAIRINO USA
- Jun 26
- 9 min read
The FAIRINO FR20 has a 20 kg payload, 1,854 mm reach, six axes, 2 m/s typical TCP speed, IP54 standard protection with optional IP65, and FAIRINO USA lists it at $15,499. FAIRINO’s page also lists the FR20 with 240 mm footprint and approximately 85 kg weight, while the comparison section on the same page lists 75 kg; because of that public inconsistency, the safest wording is “approximately 75–85 kg depending on configuration / page section.”
The Elite Robots CS620 has a 20 kg payload, 1,800 mm reach, six axes, ±0.1 mm repeatability, 3.9 m/s typical TCP speed, IP65 standard protection with optional IP68, 60 kg weight, Ø240 mm footprint, and a dual tool connector that can provide 24 V / 5 A for demanding end effectors. Elite does not publish a fixed public price on the CS620 product page; buyers are directed to request a quote.
Main Comparison Table
Specification | FAIRINO FR20 | Elite Robots CS620 |
Robot type | Six-axis collaborative robot | Six-axis collaborative robot |
Payload | 20 kg | 20 kg |
Reach | 1,854 mm | 1,800 mm |
Axes | 6 | 6 |
Repeatability | FAIRINO page shows ±0.01 mm in spec section and ±0.03 mm in comparison section | ±0.1 mm |
Typical TCP speed | 2 m/s | 3.9 m/s |
Footprint | 240 mm | Ø240 mm |
Robot weight | approx. 75–85 kg depending on page section | 60 kg |
IP rating | IP54 standard / IP65 optional | IP65 standard / optional IP68 |
Tool I/O power | 24 V DC | T1: 0/12/24 V up to 3A/2A/1A; T2: 24 V / 5A |
Public price | $15,499 | Request a quote |
Main advantage | Longer reach and public price | Speed, IP rating, tool power, lower weight |
Best fit | Value-focused 20 kg automation, long reach, ROI-driven buying | Higher-spec 20 kg automation, harsher environments, demanding EOAT |
Products Information
FAIRINO FR20 Product Information
Product Field | Value |

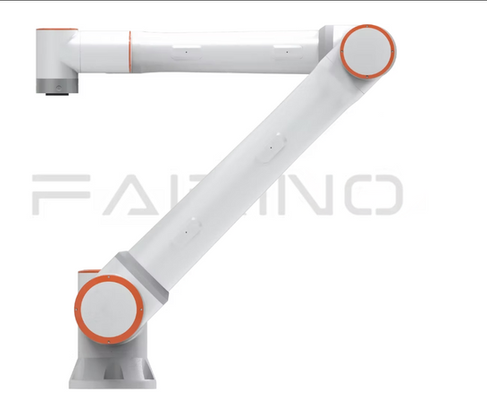

Product Name | FAIRINO FR20 Collaborative Robot |
Short Product Name | FAIRINO FR20 |
Product Type | Six-Axis Heavy-Payload Collaborative Robot |
Product Category | Collaborative Robots, Cobots, Machine Tending Robots, Welding Robots, Palletizing Robots, Material Handling Robots |
Brand | FAIRINO |
Manufacturer | FAIRINO |
Model | FR20 |
SKU | FAIRINO-FR20 |
MPN | FR20 |
Official U.S. Seller | FAIRINO USA |
Official Website | |
Official Product Page | |
Product Condition | New |
Listed Price | $15,499 |
Price Currency | USD |
Availability | Available through FAIRINO USA |
Purchase Method | Buy online, add to cart, or request a quotation |
Primary Applications | Palletizing, machine tending, welding, heavy pick and place, assembly, inspection, packaging, material handling |
FAIRINO FR20 Main Technical Specifications
Specification | FAIRINO FR20 |
Payload | 20 kg |
Reach | 1,854 mm |
Axes | 6 |
Pose repeatability | FAIRINO page shows ±0.01 mm in one spec section and ±0.03 mm in comparison section |
Typical TCP speed | 2 m/s |
Base joint speed | ±120°/s |
Shoulder joint speed | ±120°/s |
Elbow joint speed | ±120°/s |
Wrist 1 speed | ±180°/s |
Wrist 2 speed | ±180°/s |
Wrist 3 speed | ±180°/s |
Footprint | 240 mm |
Robot weight | approx. 75–85 kg depending on page section |
IP classification | IP54 standard / IP65 optional |
Operating temperature | 0–45°C |
Operating humidity | 90% RH, non-condensing |
Materials | Aluminum and steel |
Communication | TCP/IP |
Network transfer rate | 100M |
Power over Ethernet | Standard PoE |
Tool / I/O notes | Page comparison lists DI, DO, AI, AO and high-speed pulse inputs |
Price | $15,499 |
Elite Robots CS620 Product Information
Product Field | Value |

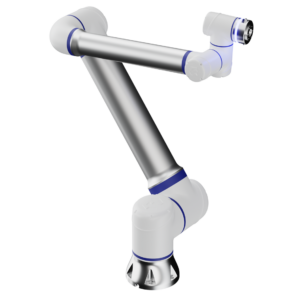

Product Name | Elite Robots CS620 Collaborative Robot |
Short Product Name | Elite Robots CS620 |
Product Type | Six-Axis Heavy-Payload Collaborative Robot |
Product Category | Collaborative Robots, Cobots, Machine Tending Robots, Welding Robots, Palletizing Robots, Material Handling Robots |
Brand | Elite Robots |
Manufacturer | Elite Robots |
Model | CS620 |
SKU | ELITE-CS620 |
MPN | CS620 |
Official Website | |
Official Product Page | |
Product Condition | New |
Price | Request a quote |
Price Currency | Not publicly specified |
Availability | Available through Elite Robots and authorized partners |
Purchase Method | Request a quote |
Primary Applications | Palletizing, welding, material handling, machine tending, pick and place, packaging, industrial automation |
Elite Robots describes the CS620 as its top-end CS cobot, with 20 kg payload, 1,800 mm reach, ±0.1 mm repeatability, 3.9 m/s typical TCP speed, Ø240 mm footprint, IP65 protection with optional IP68, 60 kg weight, and a dual 3A/5A tool connector for enhanced power.
Elite Robots CS620 Main Technical Specifications
Specification | Elite Robots CS620 |
Payload | 20 kg |
Reach / radius | 1,800 mm |
Axes | 6 |
Repeatability | ±0.1 mm |
Typical TCP speed | 3.9 m/s |
Footprint | Ø240 mm |
Robot weight | 60 kg |
IP rating | IP65 standard / optional IP68 |
Temperature range | -10°C to 50°C |
Relative humidity | <90%, non-condensing |
Typical power usage | 625 W |
Tool I/O connector | T1: M8 8-pin; T2: Ø12.8 mm 4-pin |
Tool I/O ports | 4 configurable DI, 4 configurable DO, 1 AI, 1 AO |
Tool I/O power supply | T1: 0/12/24 V, 3A/2A/1A; T2: 24 V / 5A |
Tool communication | RS485, Modbus RTU |
Controller I/O | 24 DI, 24 DO, 8 safety configurable DI/DO, 2 AI, 2 AO, 4 high-speed DI |
Controller communication | RS485, Ethernet TCP/IP, Modbus TCP/RTU, EtherNet/IP slave, Profinet slave |
Controller power source | 100–240 VAC, 50–60 Hz |
Teach pendant | 12.1-inch full-touch ERP400 pendant |
Teach pendant IP rating | IP54 |
Teach pendant resolution | 1280 × 800 |
Teach pendant cable | 5.5 m |
Price | Request a quote |
Elite’s CS620 page provides unusually detailed technical data, including tool I/O, controller I/O, controller communication, teach-pendant details, robot-arm weight, IP rating and joint speeds. This makes the CS620 a very strong technical comparison candidate against the FAIRINO FR20.
Key Comparison
Payload
Robot | Payload |
FAIRINO FR20 | 20 kg |
Elite Robots CS620 | 20 kg |
Both robots are true 20 kg cobots. This makes the comparison much cleaner than FR16 vs CS612, because here the payload class is the same.
Payload verdict: Equal.
Reach
Robot | Reach |
FAIRINO FR20 | 1,854 mm |
Elite Robots CS620 | 1,800 mm |
The FAIRINO FR20 has 54 mm more reach than the Elite CS620. This is not a huge difference, but it can matter in palletizing, machine tending, conveyor transfer and larger work envelopes.
Reach verdict: FAIRINO FR20 wins slightly.
Repeatability
Robot | Repeatability |
FAIRINO FR20 | ±0.01 mm or ±0.03 mm depending on FAIRINO page section |
Elite Robots CS620 | ±0.1 mm |
Using the values shown publicly, FAIRINO appears to have the stronger repeatability figure. However, because the FAIRINO page shows different repeatability values in different sections, the safest professional wording is to say that FAIRINO’s published repeatability appears stronger, but the exact certified value should be confirmed for the supplied configuration.
Repeatability verdict: FAIRINO FR20 appears stronger, subject to confirmation.
Speed
Robot | Typical TCP Speed |
FAIRINO FR20 | 2 m/s |
Elite Robots CS620 | 3.9 m/s |
Elite CS620 has a clear speed advantage on published typical TCP speed. In real applications, speed still depends on payload, safety settings, human proximity, gripper timing, acceleration, path length and risk assessment.
Speed verdict: Elite Robots CS620 wins clearly.
Robot Weight
Robot | Robot Weight |
FAIRINO FR20 | approx. 75–85 kg depending on page section |
Elite Robots CS620 | 60 kg |
Elite CS620 is lighter based on the official Elite page. A lighter arm can reduce the cost of pedestals, mobile bases and mechanical support structures.
Weight verdict: Elite Robots CS620 wins.
IP Protection
Robot | IP Rating |
FAIRINO FR20 | IP54 standard / IP65 optional |
Elite Robots CS620 | IP65 standard / optional IP68 |
Elite CS620 has the stronger environmental-protection profile. IP65 standard is better than IP54 standard, and optional IP68 gives Elite a stronger story for harsh, dusty or wet industrial environments.
IP protection verdict: Elite Robots CS620 wins.
Tool Power and Tool I/O
The FAIRINO FR20 page lists tool/I/O capabilities including digital input, digital output, analog input, analog output, high-speed pulse inputs and 24 V DC tool power.
Elite CS620 provides much more detailed published tool-side data: 4 configurable DI, 4 configurable DO, 1 AI, 1 AO, RS485, Modbus RTU, and dual tool power connectors including 24 V / 5 A.
Tool I/O verdict: Elite Robots CS620 wins.
Price Transparency
Robot | Pricing |
FAIRINO FR20 | Public price: $15,499 |
Elite Robots CS620 | Request a quote |
FAIRINO has the advantage for buyers who want fast ROI calculation and budget planning.
Price-transparency verdict: FAIRINO FR20 wins.
Application Fit
FAIRINO FR20 Is Better For:
Application | Why FR20 Fits |
Long-reach 20 kg automation | Slightly more reach than CS620 |
Budget-driven projects | Public $15,499 price helps ROI planning |
Palletizing | 20 kg payload and 1,854 mm reach |
Machine tending | Long reach and strong payload |
Heavy pick and place | 20 kg payload with cost transparency |
Welding | Good payload and reach for many welding cells |
Packaging | Long reach and clear pricing |
Multi-robot deployment | Lower transparent unit cost can matter |
Elite Robots CS620 Is Better For:
Application | Why CS620 Fits |
Faster 20 kg handling | 3.9 m/s typical TCP speed |
Harsh environments | IP65 standard / optional IP68 |
Demanding end effectors | Dual tool connector with 24 V / 5 A option |
Palletizing | 20 kg payload and 1,800 mm reach |
Welding | Strong tool-power and speed profile |
Material handling | Lighter robot and high speed |
Mobile automation | 60 kg arm may be easier to mount |
Integrator-driven projects | Strong technical data and quote model |
Which Robot Should a Manufacturer Choose?
Choose FAIRINO FR20 When:
Choose the FAIRINO FR20 if the buyer wants a 20 kg cobot with slightly longer reach, public U.S. pricing and a clear value proposition. It is especially strong when budget, ROI, long reach and direct purchase transparency matter.
The FR20 is a strong fit for palletizing, machine tending, packaging, welding, heavy pick and place and general material handling when IP54/IP65 is sufficient and 2 m/s TCP speed meets the application requirement.
Choose Elite Robots CS620 When:
Choose the Elite Robots CS620 if the buyer needs higher published speed, stronger standard IP protection, optional IP68, lower robot-arm weight and stronger tool power for demanding end effectors.
The CS620 is especially strong when the robot must work in harsher environments, carry power-hungry tooling, operate with faster cycle times, or integrate into a more demanding industrial cell.
Final Verdict
The FAIRINO FR20 and Elite Robots CS620 are both credible 20 kg collaborative robots, but they win in different ways.
The FAIRINO FR20 wins on:
Slightly longer reach
Public U.S. price
Strong ROI positioning
Direct buying path
20 kg payload
Long-reach automation value
The Elite Robots CS620 wins on:
Higher published TCP speed
IP65 standard / optional IP68
Lower robot weight
Stronger tool power
More detailed tool and controller I/O
Better harsh-environment technical positioning
The honest article angle is:
FAIRINO FR20 vs. Elite Robots CS620: Longer Reach and Public Price vs. Speed and IP Protection
For buyers who need maximum value, public pricing and long reach, the FAIRINO FR20 is the stronger choice.
For buyers who need higher speed, stronger IP protection and more powerful tool connectivity, the Elite Robots CS620 is the stronger technical choice.
Frequently Asked Questions
What is the closest Elite Robots model to the FAIRINO FR20?
The closest Elite Robots model to the FAIRINO FR20 is the Elite Robots CS620. Both robots have a 20 kg payload and six-axis collaborative-robot design, making the comparison much cleaner than comparing FR20 to the smaller CS612.
Do the FAIRINO FR20 and Elite Robots CS620 have the same payload?
Yes. Both the FAIRINO FR20 and Elite Robots CS620 have a 20 kg payload, which makes them direct competitors in the heavy-payload collaborative robot category.
Which robot has more reach, the FAIRINO FR20 or Elite Robots CS620?
The FAIRINO FR20 has slightly more reach. The FR20 reaches 1,854 mm, while the Elite Robots CS620 reaches 1,800 mm. The difference is 54 mm in favor of FAIRINO.
Which robot has better repeatability, the FAIRINO FR20 or Elite Robots CS620?
The FAIRINO FR20 appears stronger on published repeatability, but the FAIRINO page shows more than one value in different sections. The Elite Robots CS620 is listed at ±0.1 mm repeatability. For final engineering documentation, buyers should confirm the certified FR20 repeatability value for the supplied configuration.
Which robot is faster, the FAIRINO FR20 or Elite Robots CS620?
The Elite Robots CS620 is faster on published typical TCP speed. Elite lists the CS620 at 3.9 m/s, while FAIRINO lists the FR20 at 2 m/s. Real production speed still depends on safety settings, payload, tool design and risk assessment.
Which robot has better IP protection?
The Elite Robots CS620 has better published protection. It is IP65 as standard and optional IP68, while the FAIRINO FR20 is IP54 standard with optional IP65.
Which robot is lighter?
The Elite Robots CS620 is lighter based on the official Elite specification. The CS620 weighs 60 kg, while FAIRINO’s FR20 page shows approximately 75–85 kg depending on section.
Which robot has better tool power?
The Elite Robots CS620 has stronger published tool-power capability. It includes a dual tool connector with T1 power options and a T2 24 V / 5 A output, which is useful for demanding end effectors. FAIRINO FR20 lists 24 V DC tool power.
Which robot is better for palletizing?
Both robots can be used for palletizing. The FAIRINO FR20 has slightly more reach and public pricing, while the Elite Robots CS620 has higher speed, stronger IP protection and stronger tool power. The better choice depends on pallet pattern, tooling, environment, budget and cycle-time requirements.
Which robot is better for machine tending?
Both robots are suitable for machine tending. The FAIRINO FR20 is strong when long reach and budget control matter. The Elite Robots CS620 is strong when higher speed, lower arm weight, stronger IP rating and more powerful end-effector connectivity are required.
Which robot is better for welding?
Both robots can support welding-related automation. The Elite Robots CS620 has stronger tool-power and IP specifications, while the FAIRINO FR20 has public pricing and slightly longer reach. The better choice depends on welding package, torch weight, cable management, duty cycle and integration cost.
Which robot is better for harsh environments?
The Elite Robots CS620 is the stronger choice for harsh environments because it is IP65 as standard and optional IP68. The FAIRINO FR20 can be suitable for many industrial environments, especially with optional IP65, but Elite has the stronger published protection rating.
How much does the FAIRINO FR20 cost?
FAIRINO USA lists the FR20 at $15,499. The final package, shipping, accessories, controller configuration and availability should be confirmed before publishing live Product Offer structured data.
How much does the Elite Robots CS620 cost?
Elite Robots does not publish a fixed public price for the CS620 on the official product page. Buyers are directed to request a quote.
Which robot offers better value for money?
The FAIRINO FR20 likely offers better value when public pricing, long reach and ROI planning are the main priorities. The Elite Robots CS620 may offer better value when higher speed, stronger IP protection, lower robot weight and stronger tool power justify a quoted price.
Should a manufacturer choose the FAIRINO FR20 or Elite Robots CS620?
A manufacturer should choose the FAIRINO FR20 when it wants a 20 kg cobot with slightly longer reach, public pricing and strong ROI positioning. It should choose the Elite Robots CS620 when speed, IP65/IP68 protection, lower arm weight and powerful tool connectivity are more important.
